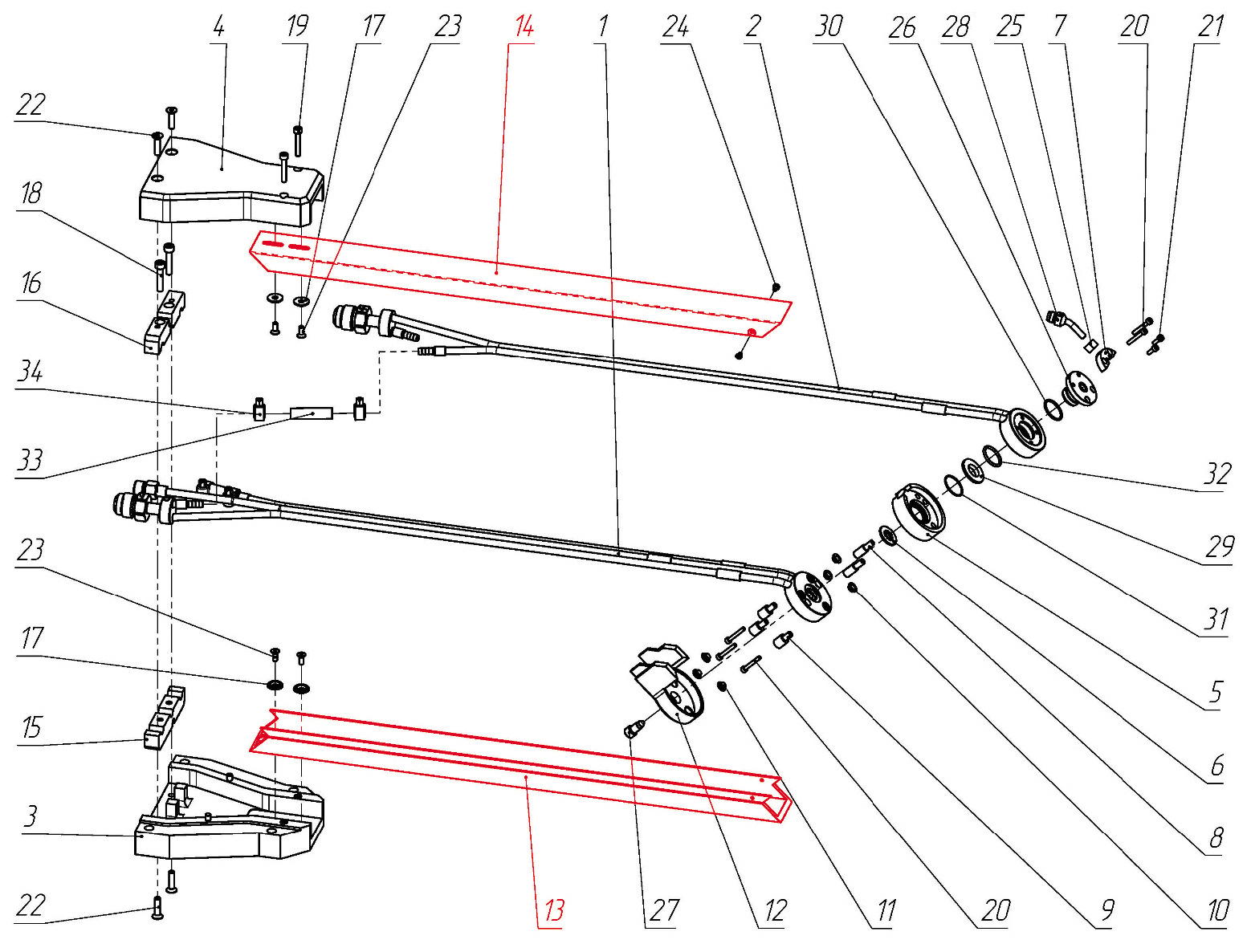

GST-00106171 F1-45-600 assembly top and bottom shell is compatible with the F1-45 model, shown as position 13-14 on the diagram.
GST F1-45 Plasma Gun
| No. | Article | Name | OEM Article No. | OEM Article No. |
|---|---|---|---|---|
| 1 | ST1003750 | Rear section complete | 1003750 | 301.012-01 |
| 1 | GST-00106151 | Rear section complete | - | - |
| 1 | GST-00106152 | Rear section complete | - | - |
| 1 | GST-00106153 | Rear section complete | - | - |
| 1 | GST-00106154 | Rear section complete | - | - |
| 2 | ST1003749 | Front section | 1003749 | 301.015-01 |
| 2 | GST-00106156 | Front section | - | - |
| 2 | GST-00106157 | Front section | - | - |
| 2 | GST-00106158 | Front section | - | - |
| 2 | GST-00106159 | Front section | - | - |
| 3 | ST1003629a | Shell for F1 | 1003629 | 301.001-01 |
| 4 | ST1003629b | Shell for F1 | 1003629 | 301.001-01 |
| 5 | ST1003754 | Intermediate section complete | 1003754 | 301.014-00 |
| 6 | ST1003634 | Gas distribution ring | 1003634 | 301.013 |
| 7 | ST1003636 | Injector support standard | 1003636 | 301.022 |
| 8 | ST1003640 | Centering pin | 1003640 | 3001.009 |
| 9 | ST1003624 | Insulating sleeves and covers | 1003624 | 301.007 |
| 10 | GST-00106065 | F1 Insulating insert | - | - |
| 11 | GST-00106066 | F1 Insulator cap | - | - |
| 12 | ST1003751 | Cover | 1003751 | 301.002-01 |
| 13-14 | GST-00106170 | F1-45-495 assembly top and bottom shell | - | - |
| 13-14 | GST-00106171 | F1-45-600 assembly top and bottom shell | - | - |
| 13-14 | GST-00106172 | F1-45-700 assembly top and bottom shell | - | - |
| 13-14 | GST-00106173 | F1-45-750 assembly top and bottom shell | - | - |
| 13-14 | GST-00106174 | F1-45-1000 assembly top and bottom shell | - | - |
| 15 | ST1003633a | Holder | 1003633 | 301.006 |
| 16 | ST1003633b | Holder | 1003633 | 301.006 |
| 17 | - | Bolt washer | - | - |
| 18 | - | Socket head cap screw for holder | - | 301.029 |
| 19 | - | Socket head cap screw | - | - |
| 20 | ST1003521 | Nozzle screws, M3x10 | 1003521 | 301.023 |
| 21 | - | Nozzle screws, M3x10 | - | - |
| 22 | - | Socket head cap screw | - | 301.028 |
| 23 | - | Socket head cap screw | - | - |
| 24 | - | Screws, M3x6 | - | 301.003 |
| 25 | - | Locknut, M5 | - | 301.021 |
| 26 | ST1003621 | Nozzle, 5 mm | 1003621 | 301.018 |
| 26 | ST1003743 | Nozzle, 6 mm | 1003743 | 301.019 |
| 27 | ST1003742 | Electrode, plug type | 1003742 | 301.010-01 |
| 27 | ST1003747 | Screw for electrode | 1003747 | 301.011 |
| 28 | ST1003758 | Powder injector 1.5 mm | 1003758 | 380.004 |
| 28 | ST1003760 | Powder injector 1.8 mm | 1003760 | 380.005 |
| 28 | ST1003761 | Powder injector 2.0 mm | 1003761 | 380.006 |
| 29 | ST1003754a | Intermediate section complete | 1003754 | 301.014-00 |
| 30 | ST1003626 | O-Ring, 19 x 1.5 mm | 1003626 | 301.017 |
| 31 | ST1003754b | Intermediate section complete | 1003754 | 301.014-00 |
| 32 | ST1003745 | O-Ring, 18 x 2 mm | 1003745 | 301.016 |
| 33 | ST1003510 | Connecting hose | 1003510 | 301.005 |
| 34 | ST1003509 | Connecting hose clamp | 1003509 | 301.004 |
