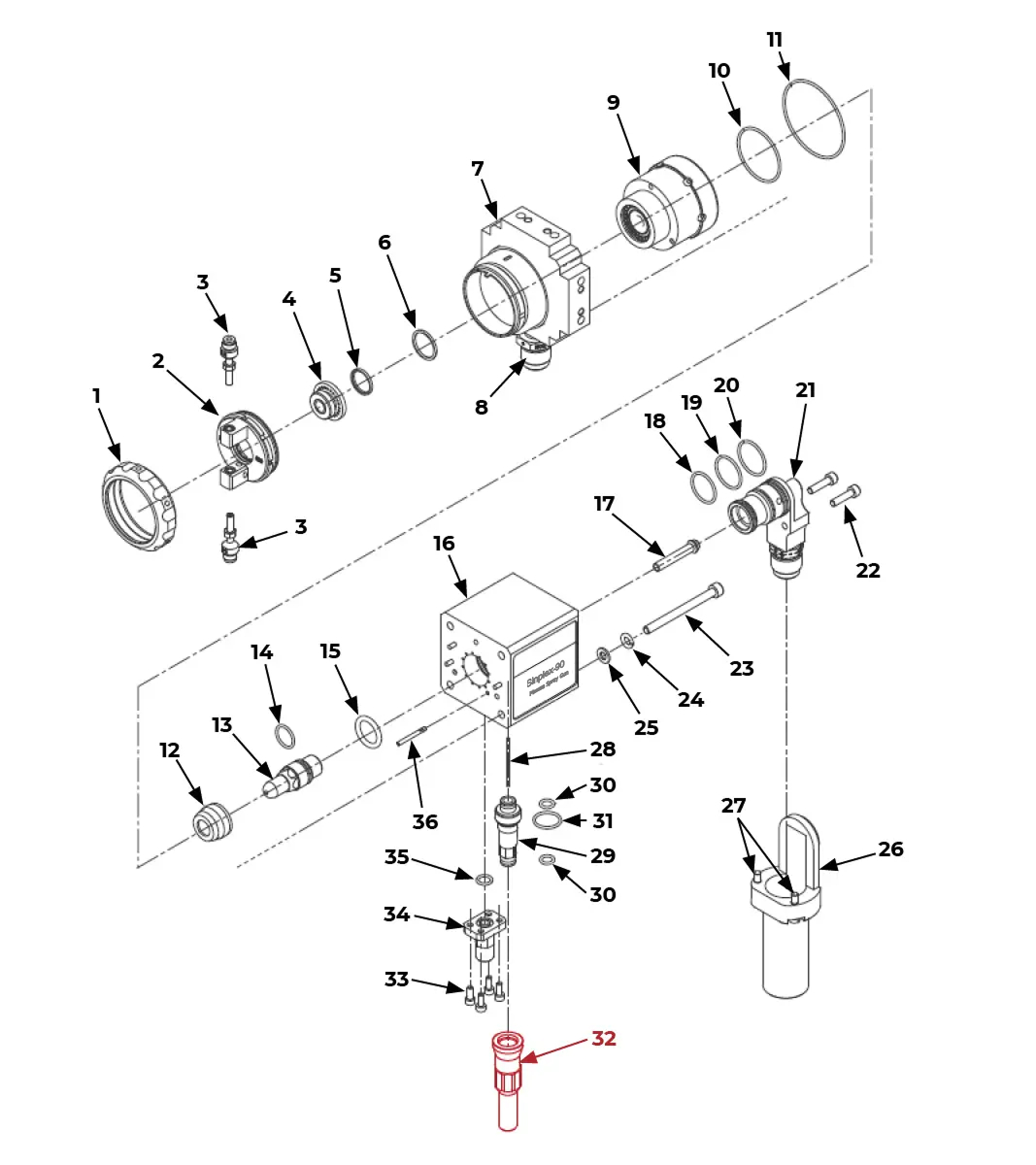

ST1081773 Ignition Insulator is compatible with the Sinplex-90 model, shown as position 32 on the diagram.
GST Sinplex-90 Plasma Gun
| No. | Article | Name | OEM Article No. |
|---|---|---|---|
| 1 | ST1060231 | Nozzle Nut | 1060231 |
| 2 | ST1080091 | Short Injector Ring | 1080091 |
| 2 | ST1079906 | Long Injector Ring | 1079906 |
| 3 | ST1003436 | Powder Injector 1.8 | 1003436 |
| 3 | ST1003439 | Powder Injector 2.0 | 1003439 |
| 3 | ST103434 | Powder Injector 1.5 | 103434 |
| 4 | ST1082606 | Nozzle Assembly, 9 mm (includes items 5 & 6) | 1082606 |
| 4 | ST1082605 | Nozzle Assembly, 6.5 mm (includes items 5 & 6) | 1082605 |
| 4 | ST1302081 | Nozzle Assembly, 8 mm (includes items 5 & 6) | 1302081 |
| 5 | ST1081770 | Insulator Ring | 1081770 |
| 6 | ST1061036 | O-ring, (Quad Ring) 0.801 X 0.070 | 1061036 |
| 7 | ST1079905 | Front Gun Body Assembly (includes item 8) | 1079905 |
| 8 | ST1000103 | Water (NOZ +) Hose Fitting | 1000103 |
| 9 | ST1079904 | Neutrode Stack Assembly | 1079904 |
| 10 | ST1059685 | O-ring, 1.614 x 0.070 Black Viton | 1059685 |
| 11 | ST1000366 | O-ring, 2.364 x 0.070 Viton | 1000366 |
| 12 | ST1079909 | Electrode Insulator | 1079909 |
| 13 | ST1079897 | Electrode | 1079897 |
| 14 | ST1001462 | O-Ring, Black Viton 0.614 x 0.07 in. (pkg. of 6) | 1001462 |
| 15 | ST1017527 | O-Ring, Buna 0.734 x 0.139 in. | 1017527 |
| 16 | ST1079907 | Rear Gun Body | 1079907 |
| 17 | ST1003423 | Cooling Water Tube | 1003423 |
| 18 | ST1015536 | O-Ring, Black Viton 0.864 x 0.07 in. | 1015536 |
| 19 | ST1001624 | O-Ring, Buna 0.926 x 0.07 in. (pkg. of 3) | 1001624 |
| 20 | ST1000225 | O-Ring, Black Viton 0.989 x 0.07 in. (pkg. of 2) | 1000225 |
| 21 | ST1079908 | Electrode Holder | 1079908 |
| 22 | ST1089684 | Screw, M5 x 20 mm (2 pcs.) | 1089684 |
| 23 | ST1059687 | Screw, M6 x 70mm (4 pcs.) | 1059687 |
| 24 | ST1089683 | Lock Washer, M6 (4 pcs.) | 1089683 |
| 25 | ST1089682 | Flat Washer, M6 (4 pcs.) | 1089682 |
| 26 | ST1081771 | Hose Cover (includes item 27) | 1081771 |
| 27 | ST1081772 | Captive Screw (2 pcs.) | 1081772 |
| 28 | ST1079913 | Ignition Spring | 1079913 |
| 29 | ST1079911 | Ignition Fitting (includes items 30 & 31) | 1079911 |
| 30 | ST1015535 | O-Ring, Black Viton 0.301 x 0.07 in. (2 pcs.) | 1015535 |
| 31 | ST1000143 | O-Ring, Black Viton 0.676 x 0.07 in. (pkg. of 4) | 1000143 |
| 32 | ST1081773 | Ignition Insulator | 1081773 |
| 33 | ST1003513 | Screw, M4 x 10 (4 pcs.) | 1003513 |
| 34 | ST1079910 | Plasma Gas Fitting | 1079910 |
| 35 | ST1002073 | O-Ring, Black Viton, 0.344 x 0.07 in. (pkg. of 4) | 1002073 |
| 36 | ST1079912 | Ignition Pin | 1079912 |
