ST310058 Water jacket is supplied complete with the following items:
- Fitting, swivel, water in;
- Fitting, water out;
- Front cover plate;
- Screw, front cover plate.

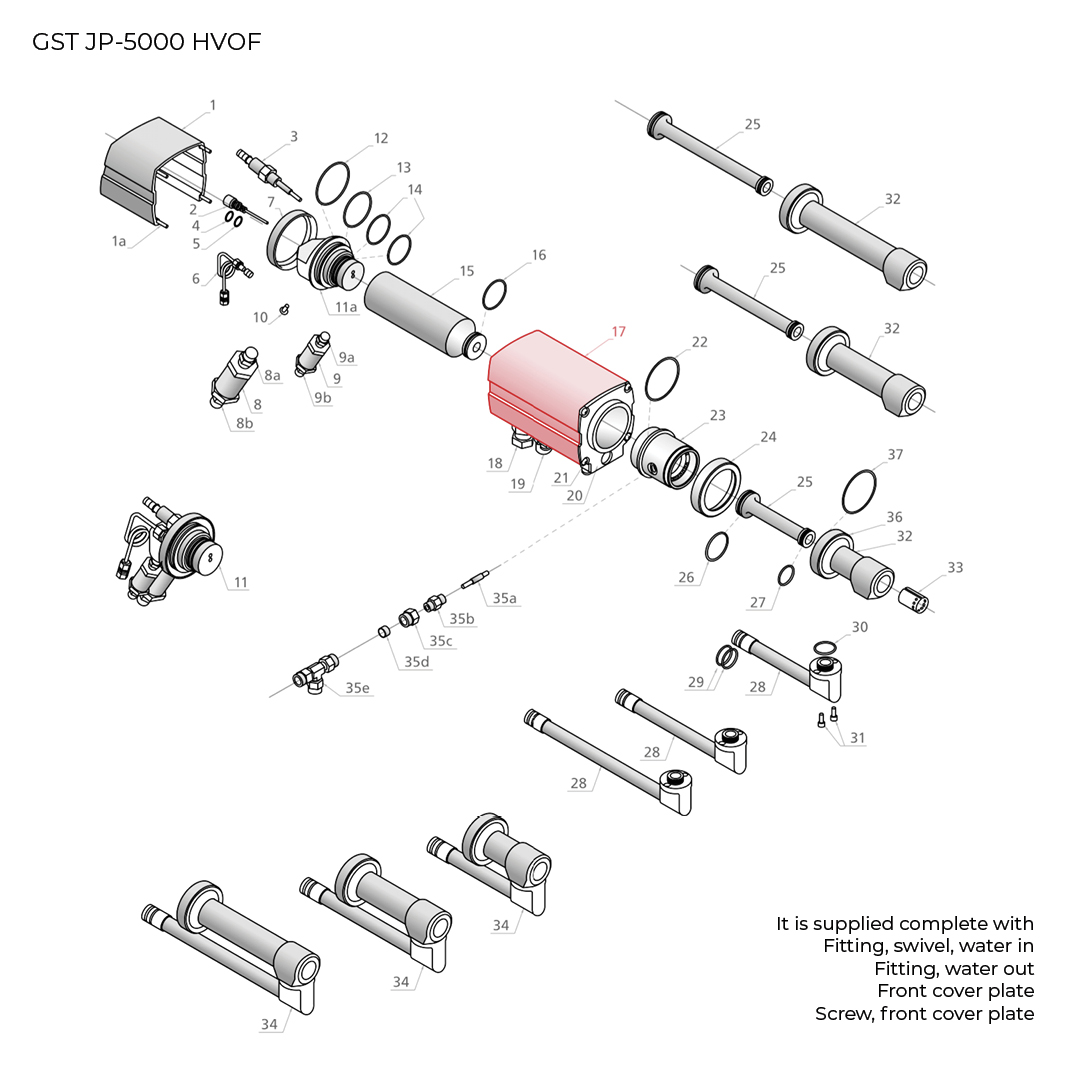

Compatible with the JP5000 model, shown as position 17 on the diagram.
| No. | Article | Name | OEM Article No. |
|---|---|---|---|
| 1 | ST310062 | Rear cover | 310.062 |
| 1a | ST310004 | Rear cover dowel pin | 310.004 |
| 2 | ST310082 | Coaxial fuel tube assembly | 310.082 |
| 3 | ST310074 | Spark plug assembly | 310.074 |
| 4 | ST310025 | O-Ring, coaxial fuel tube, rear | 310.025 |
| 5 | ST310034 | O-Ring, coaxial fuel tube, front | 310.034 |
| 6 | ST310086 | Combustion pressure tube assembly | 310.086 |
| 7 | ST310045 | Nut, stabilizer to water jacket | 310.045 |
| 8 | ST310103 | Oxygen check valve | 310.103 |
| 8a | ST310010 | Nipple, 1/4" Oxygen check valve to stabilizer | 310.010 |
| 8b | ST310013 | Adapter, 1/4" NPT | 310.013 |
| 9 | ST310042 | Fuel check valve | 310.042 |
| 9a | ST310009 | Nipple, 1/8" Fuel check valve to stabilizer | 310.009 |
| 9b | ST310007 | Adapter 1/8" NPT | 310.007 |
| 10 | ST310005 | Screw, ground cable | 310.005 |
| 11 | ST310069 | Coaxial stabilizer assembly | 310.069 |
| 11a | GST-201071 | Rear gun body | - |
| 12 | ST310030 | O-Ring, stabilizer, back | 310.030 |
| 13 | ST310101 | O-Ring, comb. chamber to stab. spacer | 310.101 |
| 14 | ST310033 | O-Ring, stabilizer, front | 310.033 |
| 15 | ST310060 | Combustion chamber | 310.060 |
| 16 | ST310031 | O-Ring, combustion chamber | 310.031 |
| 17 | ST310058 | Water jacket | 310.058 |
| 18 | ST310018 | Fitting, swivel, water in, 3/8" MNPT | 310.018 |
| 19 | ST310017 | Fitting, water out | 310.017 |
| 20 | ST310063 | Front cover plate | 310.063 |
| 21 | ST310002 | Screw, front cover plate | 310.002 |
| 22 | ST310102 | O-Ring, interconnector | 310.102 |
| 23 | ST310059 | Interconnector | 310.059 |
| 24 | ST310044 | Nut, interconnector to water jacket | 310.044 |
| 25 | ST310078 | 4" Barrel w/O-Rings | 310.078 |
| 25 | ST310079 | 6" Barrel w/O-Rings | 310.079 |
| 25 | ST310080 | 8" Barrel w/O-Rings | 310.080 |
| 26 | ST310032 | O-Ring, barrel, back | 310.032 |
| 27 | ST310035 | O-Ring, barrel, front | 310.035 |
| 28 | ST310052 | 4" Water return tube | 310.052 |
| 28 | ST310053 | 6" Water return tube | 310.053 |
| 28 | ST310054 | 8" Water return tube | 310.054 |
| 29 | ST310026 | O-Ring, water return tube to water jacket | 310.026 |
| 30 | ST310100 | O-Ring, water return tube/barrel holder | 310.100 |
| 31 | ST310003 | Screw, water return to barrel holder | 310.003 |
| 32 | ST310047 | 4" Barrel holder | 310.047 |
| 32 | ST310048 | 6" Barrel holder | 310.048 |
| 32 | ST310049 | 8" Barrel holder | 310.049 |
| 33 | ST310065 | Water baffle | 310.065 |
| 34 | ST310070 | 4" Barrel assembly | 310.070 |
| 34 | ST310071 | 6" Barrel assembly | 310.071 |
| 34 | ST310072 | 8" Barrel assembly | 310.072 |
| 35a | ST310061-01 | Feed tube insert | 310.061-01 |
| 35b | ST310091-01 | Fitting, powder port 1/4" | 310.091-01 |
| 35c | ST310019 | Nut, 1/4" tube | 310.019 |
| 35d | ST310008 | Ferrule, plastic, 1/4" tube | 310.008 |
| 35e | ST310016 | Powder feed splitter | 310.016 |
| 36 | ST310043 | Nut, barrel holder to interconnector | 310.043 |
| 37 | ST310029 | O-Ring, barrel holder | 310.029 |
