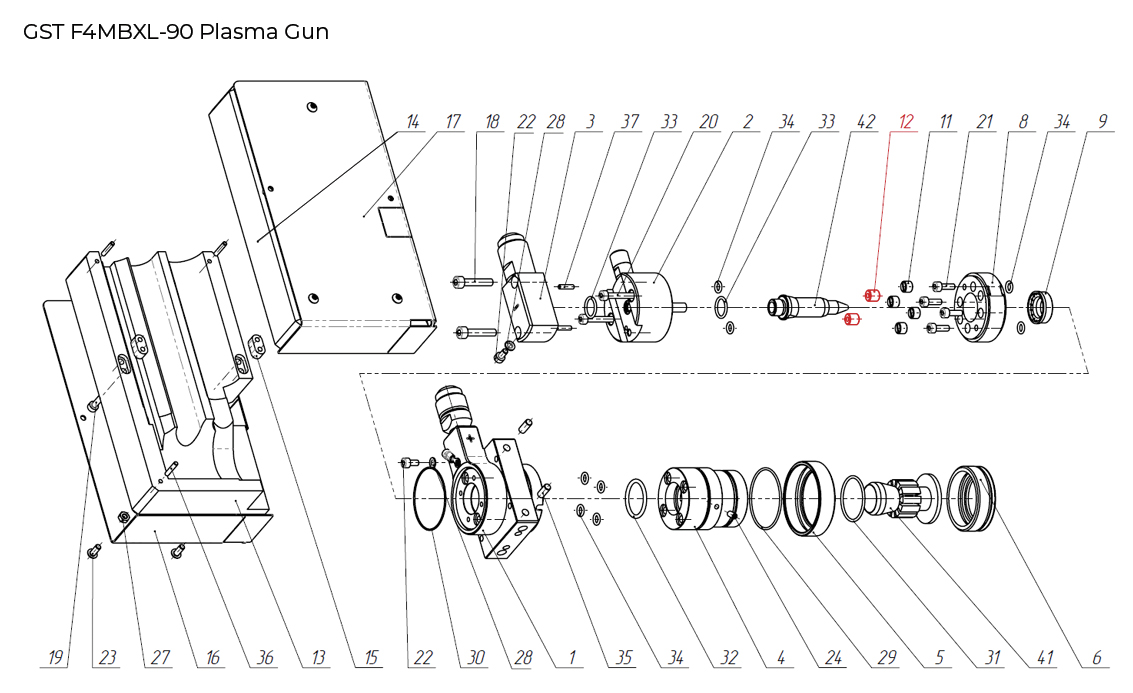

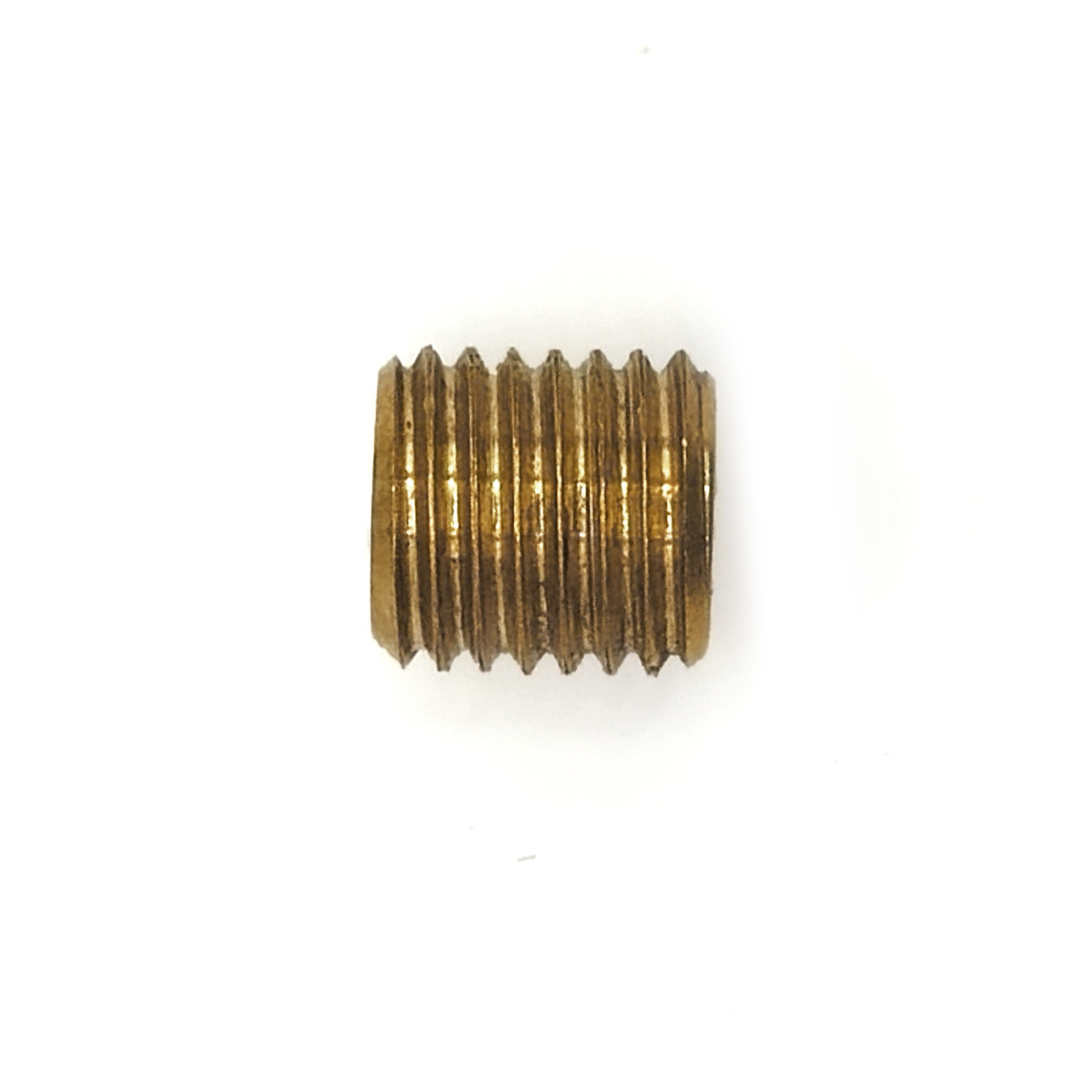

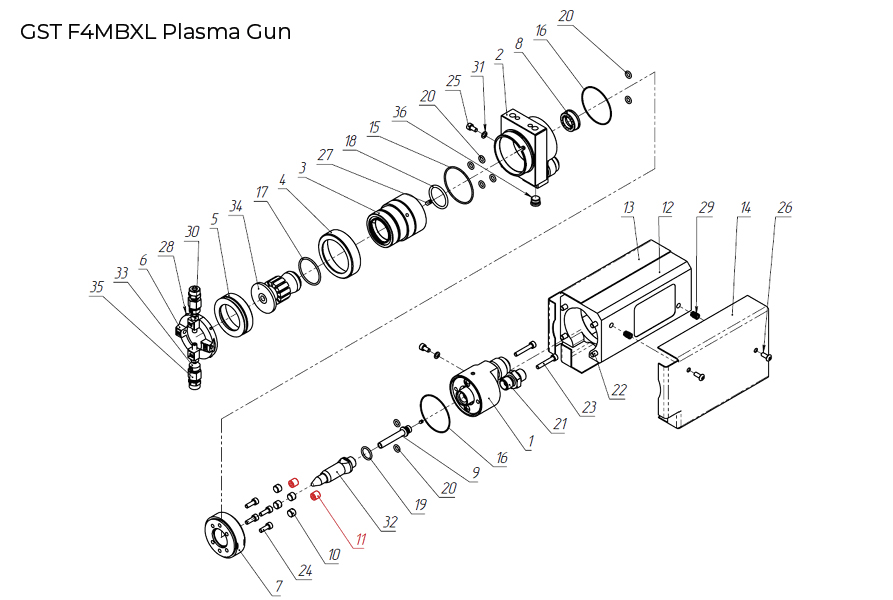

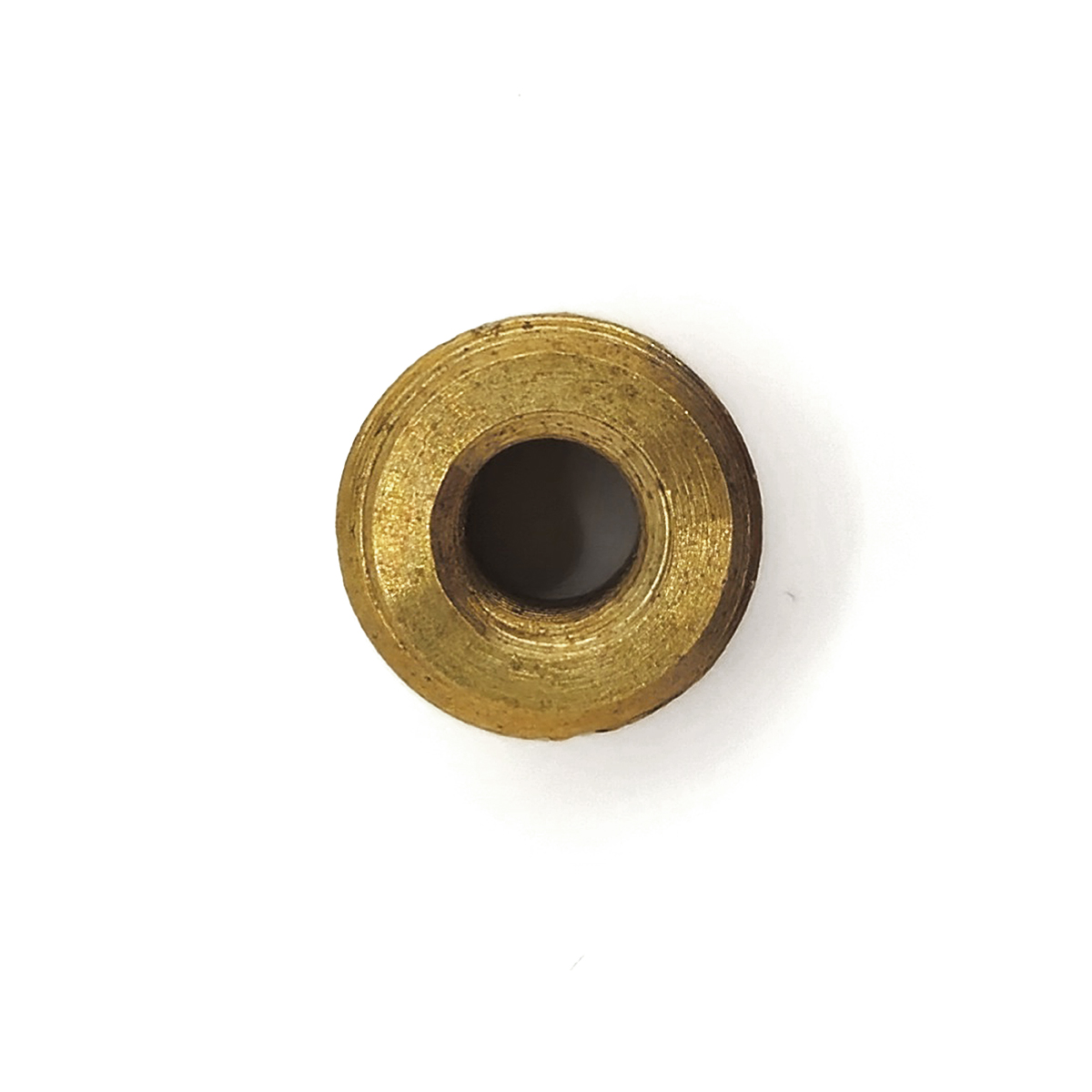

GST-100025 Insulator threaded bushing (2 pcs.) is compatible with F4/F4-90 plasma gun models, on the F4 plasma gun diagram it is shown as position 11, on the F4-90 plasma gun diagram it is shown as position 12
| No. | Article | Name | OEM Article No. | OEM Article No. |
|---|---|---|---|---|
| 1 | ST1079065 | Center Gun Body | 1079065 | - |
| 2 | ST1079045 | Rear Gun Body Assembly | 1079045 | - |
| 3 | GST-100082 | Rear Gun Body Fitting | - | - |
| 4 | ST1003421 | Front Gun Body | 1003421 | - |
| 5 | ST1003425 | Rear Locking Ring | 1003425 | - |
| 6 | ST1003419 | Front Locking Ring | 1003419 | 300.035 |
| 7 | ST1003430 | Injector Holder, Double, 90°/75° | 1003430 | 300.037-1 |
| 7 | GST-100008 | Injector Holder, Double, 90°/90° | - | - |
| 7 | ST1003478 | Injector Holder, Double, 90°/105° | 1003478 | - |
| 7 | ST1006700 | Injector Holder, Double, 90°/100° | 1006700 | - |
| 7 | ST1003479 | Injector Holder, Double, 100°/100° | 1003479 | - |
| 7 | ST1003481 | Injector Holder, Double, 100°/105° | 1003481 | - |
| 7 | ST1003480 | Injector Holder, Double, 105°/105° | 1003480 | - |
| 7 | ST1008686 | Injector Holder, Double, 105°/75° | 1008686 | - |
| 7 | ST1003432 | Injector Holder, Double, 75°/75° | 1003432 | - |
| 7 | ST1003443 | Injector Holder, 4 x 90° | 1003443 | - |
| 7 | ST1003444 | Injector Holder, 105° / 75° / 105° / 75° | 1003444 | - |
| 7 | ST1003445 | Injector Holder, 75° / 90°/ 75° / 90° | 1003445 | - |
| 7 | ST1008656 | Injector Holder, 90° / 75° / 90° / 105° | 1008656 | - |
| 7 | ST1003446 | Injector Holder, 105° / 90° / 105° / 90° | 1003446 | - |
| 7 | ST1008657 | Injector Holder, 105° / 90° / 90° / 75° | 1008657 | - |
| 8 | ST1003497 | Insulator Assembly | 1003497 | 300.015 |
| 9 | ST1003499 | Gas Ring | 1003499 | 300.018 |
| 11 | ST1003512 | Insulating Screw | 1003512 | 300.010 |
| 12 | GST-100025 | Isolating threaded bushing | - | - |
| 13 | GST-100091 | Cover part 1 | - | - |
| 14 | GST-100092 | Cover part 2 | - | - |
| 15 | GST-100095 | Cover key | - | - |
| 16 | GST-100096 | Protective cover part 1 | - | - |
| 17 | GST-100097 | Protective cover part 2 | - | - |
| 18 | 912052588Z | Screw | 1003514 | 300.003-01 |
| 19 | 912043088Z | Screw | - | - |
| 20 | 912042588Z | Screw | - | - |
| 21 | 912041288Z | Screw | 1003513 | 300.013 |
| 22 | 912040888Z | Screw | - | - |
| 22 | 912040888Z | Screw | - | - |
| 23 | 73800410109Z | Screw | - | - |
| 24 | 9130408129Z | Screw | 1003511 | 300.021 |
| 25 | ST1003525 | Screw | 1003525 | 300.036 |
| 26 | GST-100031 | Nut | - | - |
| 27 | GST-00072462 | Nut | - | - |
| 28 | GST-00072479 | Washer | - | - |
| 28 | GST-00072479 | Washer | - | - |
| 29 | ST1003473 | O-Ring | 1003473 | 300.060 |
| 30 | ST1038940 | O-Ring | 1038940 | 300.061 |
| 31 | ST1059684 | O-Ring | 1059684 | 300.033 |
| 32 | ST1041816 | O-Ring | 1041816 | 300.024 |
| 33 | ST1000359 | O-Ring | 1000359 | 300.007 |
| 34 | ST1001434 | O-Ring | 1001434 | 300.005 |
| 35 | GST-100115 | Pin | - | - |
| 36 | GST-100116 | Pin | - | - |
| 37 | GST-100117 | Pin | - | - |
| 39 | GST-100048 | Powder hose fitting | - | - |
| 40 | ST1003436 | Powder Injector, 1.8 mm (with undercut),standard | 1003436 | 380.002 |
| 40 | ST1003434 | Powder Injector, 1.5 mm (with undercut),standard |
1003434 | 380.001 |
| 40 | ST1003439 | Powder Injector, 2.0mm (with undercut),standard |
1003439 | 380.003 |
| 41 | ST1003442 | Nozzle, 5mm | 1003442 | - |
| 41 | ST1072007 | Nozzle, 6mm | 1072007 | - |
| 41 | ST1003407 | Nozzle, 7mm | 300002-10/1003407 | 300.029 |
| 41 | ST1003408 | Nozzle, 8mm | 300002-20/1003408 | 300.031 |
| 42 | ST1072006 | Electrode WLa | 1072006 | 300.008 |
| 42 | ST1072006 | Electrode WCe | 1072006 | 300.008 |
| 42 | ST1072006 | Electrode WTh | 1072006 | 300.008 |
| 43 | GST-100066 | Air cooling nozzle | - | - |
| 44 | GST-100051 | Metal extender | - | - |
| 45 | GST-100050 | Powder remover 90° | - | - |
| 46 | GST-100061 | Water-cooled power cable (red) | - | - |
| 47 | GST-100062 | Water-cooled power cable (blue) | - | - |
| 48 | GST-100063 | Plasma-forming gas hose | - | - |
| 49 | GST-100088 | Voltage control cable | - | - |
| 50 | GST-100084 | Air cooling nozzle hose | - | - |
| 51 | GST-100069 | Textile cable protection | - | - |
| 52 | GST-100049 | Powder hose | - | - |
