ST1069418 Rear Gun Body Assembly

Hardware warranty 12 months

Characteristics

Spray Gun Model

—

GST F4MBXL Plasma Gun

OEM Article No.

—

1069418

Let's find complete soultion for your application together.

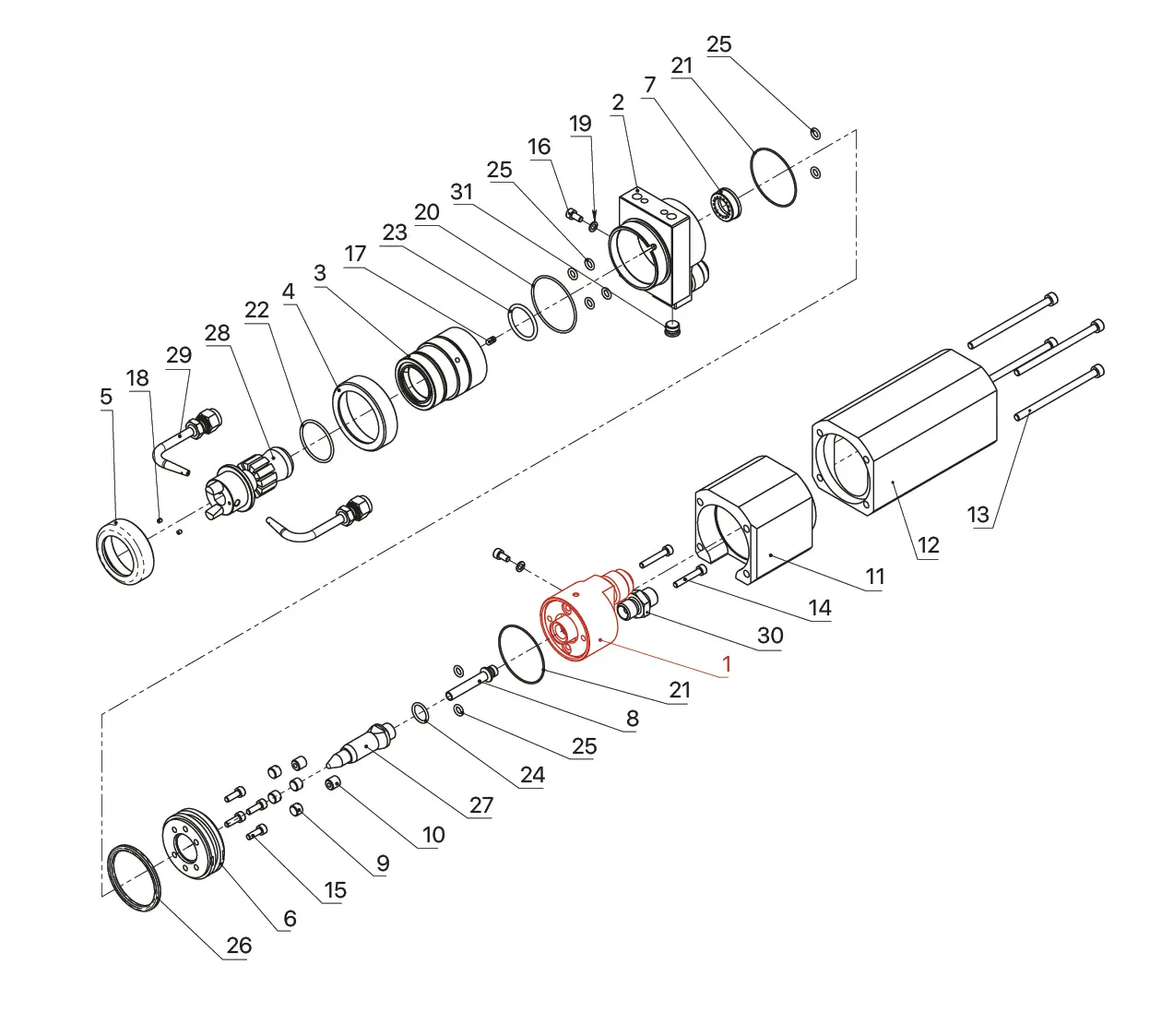

ST1069418 Rear Gun Body Assembly is supplied complete with cooling tube. Compatible with the F4 model, shown as position 1 on the diagram.

No.	Article	Name	OEM Article No.	OEM Article No.
1	ST1069418	Rear Gun Body Assembly	1069418	-
2	ST1069416	Center Gun Body	1069416	-
3	ST1003421	Front Gun Body	1003421	-
4	ST1003425	Rear Locking Ring	1003425	-
5	ST1003419	Front Locking Ring	1003419	300.035
6	ST1003430	Injector Holder, Double, 90°/75°	1003430	300.037-1
6	GST-100008	Injector Holder, Double, 90°/90°	-	-
6	ST1003478	Injector Holder, Double, 90°/105°	1003478	-
6	ST1006700	Injector Holder, Double, 90°/100°	1006700	-
6	ST1003479	Injector Holder, Double, 100°/100°	1003479	-
6	ST1003481	Injector Holder, Double, 100°/105°	1003481	-
6	ST1003480	Injector Holder, Double, 105°/105°	1003480	-
6	ST1008686	Injector Holder, Double, 105°/75°	1008686	-
6	ST1003432	Injector Holder, Double, 75°/75°	1003432	-
6	ST1003443	Injector Holder, 4 x 90°	1003443	-
6	ST1003444	Injector Holder, 105° / 75° / 105° / 75°	1003444	-
6	ST1003445	Injector Holder, 75° / 90°/ 75° / 90°	1003445	-
6	ST1008656	Injector Holder, 90° / 75° / 90° / 105°	1008656	-
6	ST1003446	Injector Holder, 105° / 90° / 105° / 90°	1003446	-
6	ST1008657	Injector Holder, 105° / 90° / 90° / 75°	1008657	-
7	ST1003497	Insulator Assembly	1003497	300.015
8	ST1003499	Gas Ring	1003499	300.018
9		Cooling tube	1003423	300.006
10	ST1003512	Insulating screw	1003512	300.010
11	GST-100025	Insulator threaded bushing	-	-
12	ST1069419	Cover Assembly	1069419	-
13	GST-100054	Protective cover part 1	-	-
14	GST-100055	Protective cover part 2	-	-
15	GST-100037	O-Ring	-	-
16	ST1038940	O-Ring	1038940	300.061
17	GST-100039	O-Ring	-	-
18	GST-100040	O-Ring	-	-
19	ST1000359	O-Ring	1000359	300.007
20	ST1001434	O-Ring	1001434	300.005
21		Fitting pipe	-	-
22	GST-100035	Screw	-	-
23	GST-100043	Screw	-	-
24	GST-100023	Screw	-	-
25	GST-100089	Screw	-	-
26	GST-100056	Screw	-	-
27	GST-100003	Screw	-	-
28	GST-100021	Screw	-	-
29		Fusion nut	-	-
30	GST-100031	Nut	-	-
31	GST-100059	Washer	-	-
32	ST1072006	Electrode WLa	1072006	300.008
32	ST1072006	Electrode WCe	1072006	-
32	ST1072006	Electrode WTh	1072006	-
33	ST1003436	Powder Injector, 1.8 mm (with undercut),standard	1038715	-
33	ST1003434	Powder Injector, 1.5 mm (with undercut),standard	1038714	-
33	ST1003439	Powder Injector, 2.0mm (with undercut),standard	1038716	-
34	ST1003442	Nozzle, 5mm	1003442	-
34	ST1072007	Nozzle, 6mm	1072007	-
34	ST1003407	Nozzle, 7mm	300002-10/1003407	300.029
34	ST1003408	Nozzle, 8mm	300002-20/1003408	300.031
35	GST-100048	Powder hose fitting	-	-
36	GST-100057	Blind plug	-	-
